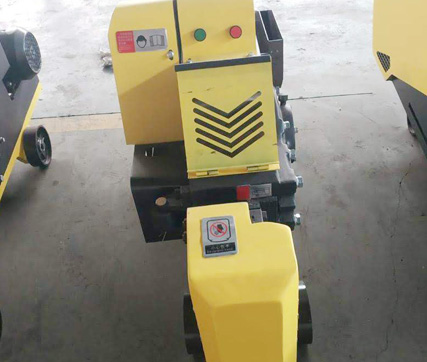

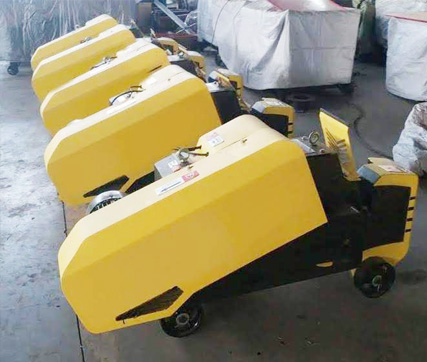

BAR - CUTTING MACHINE
Technical Specifications
| Model | Capacity | Motor Power | Motor Speed | Weight | Dimension | Cutting Frequency | Diameter of Working Plate |
| GQ 42 | TMT Bar – 6mm - 32mm |
3KW | 2880r/min | 430 Kgs | 1440x460x770 mm | 32 times/Min | 350 mm |
| GQ 50 | TMT Bar – 6mm - 40mm |
4KW | 2880r/min | 525 Kgs | 1450x500x730mm | 32 times/Min | 430 mm |
Features :
1. Compact & Elegant Design, Light in weight and reliable in quality
2. The machine comes with closed box structure in which the flying gears lubricate themselves
3. Low functional loss due to improvement in lubrication system and the adoption of rolling bearing at the end of gear axis. This machine’s functional loss is 1/3rd of other make.
