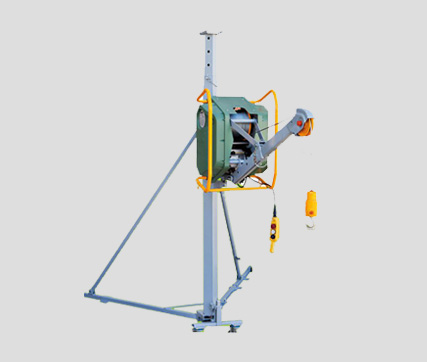

MINI CRANE
Technical Specifications
| Load capacity | Upto 500kgs (Max) |
| Maximum height | 60 Mtrs |
| Motor Rating | 3Hp, three phase |
| Lifting Speed | 25M/Min |
| Maximum Angel Rotation | 220 ° |
| Total weight of Machine | 150 Kgs |
| Wire Rope Diameter | 6mm |
| Boom Type | Adjustable Telescopic |
Features :
1. Best in class CE Marked European make Geared Brake Motor with high starting torque and External brake. It is designed as per EU standards.
2. Telescopic Column (Jack) System for easy erection with Floor and Roof.
3. Additional Bipod system provided where there is no roof.
4. Bipod can be anchored to avoid counter weights.
5. High performance Motor.
6. It is Protected by Anti –Shock Steel tube that endows it with maximum hit protection and facilitates its maneuverability.
7. Oversized Winding drum guarantees a longer Wiring lifetime.
8. Safety Hook with anti-twist device.
9. Self braking system to block the unit as soon as power outage occurs.
10. Starts under full load from any dead point in its run.
11. Permanently Greased Mechanism with minimal maintenance.
12. Anti-Tip device for the correct installation of Column and bipod.
Optional:
1. Counter Weights
